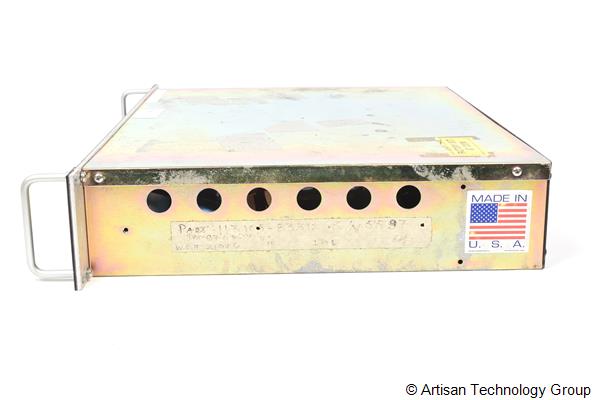

  • Marine Satellite Tracking Antenna Control Unit Tac-92 Ver. 3.07d Gear Set - $2407.87 Gear Set Bravo W/27/32 Gears Need Shims For Update1988-1973a 4.
  • 1958-1972 Johnson Evinrude Outboard 50hp-125hp Service Repair Manual DOWNLOAD Download Now. 2008 Johnson Evinrude E-TEC 40 50 60 65 HP OutBoard Service Repair Manual Download Download Now. 1992-2001 Johnson Evinrude 65-300 HP V4 / V6 / V8 Engines Service Repair Manual (PDF Preview, Perfect for the DIY person!).
  1. See Full List On Marinesatellitesystems.com
  2. Sea Tel Tac-92 Manually

- Ku/Ka dual band tri-sat system ready for DIRECTV HD

Sea tel tac-92 manually

1958-1972 Johnson Evinrude Outboard 50hp-125hp Service Repair Manual DOWNLOAD Download Now. 2008 Johnson Evinrude E-TEC 40 50 60 65 HP OutBoard Service Repair Manual Download Download Now. 1992-2001 Johnson Evinrude 65-300 HP V4 / V6 / V8 Engines Service Repair Manual (PDF Preview, Perfect for the DIY person!).

- 1.30m/51in dish

- 1.64m Tuned Radome

Library

- LMXP, 19' 1U rack mountable

- Installation hardware

- Manuals and documentation

  • Pcs
  • No. of pck
  • LxWxH per pck
  • CBM per pck
  • CBM total
  • Gross Weight

Disclaimers

The manuals/technical data (ECCN EAR99) and software (ECCN EAR99) below are subject to US Government export control in accordance with the Export Administration Regulations. Export of this data to any foreign country or disclosure of this data to a Non-US person may be a violation of Federal law.

Installation Accessories

SeaTel 80TV, 100TV AND 120TV Three axis worldwide SeaTel 100TVHD AND 120TVHD DirecTV US HD and worldwide SeaTel XX04 Series SeaTel 4004 SeaTel 3004, 4004, 5004 4004 Azimuth Limits and Initialization 6004 azimuth limits (XX.Xk software)

SeaTel 80TV, 100TV AND 120TV Three axis worldwide

These new Seatel TVs provide worldwide coverage using the same Ku band Worldwide Programable LNB that automatically configures for circular pol or linear pol when changing regions.
The DVB S2 tuner, built into the above-deck antenna provides positive satellite identification on the of the latest DVB-S2 and DVB-S satellites. The antenna is controlled from any PC, tablet or smartphone on your ship's network via the built in web GUI in the LMXP (Media Exchange Point) located in the rack.
SeaTel 80TVSeaTel 100TVSeaTel 120TV
Reflector 83cm (32.68in)Reflector 101.6cm (40in)
Min EIRP 41.5dBW
Reflector 124.46 cm (49in)
Radome 108cm (42.52in) x 123.5cm highRadome 136.46cm(53.72 in) x152.2 cm highRadome 166.88 cm (65.7 in) x 178.31 cm high
Weight 86kg (190lbs)Weight 99.79kg (220 lbs)Weight 115.67 kg (255 lbs)
Worldwide Ku-Band Programable Circular/Linear LNBWorldwide Ku-Band Programable Circular/Linear LNBWorldwide Ku-Band Programable Circular/Linear LNB
LMXP Controller via laptopLMXP Controller via laptopLMXP Controller via laptop
List price $21,995List price $23,995List price $25,995

SeaTel 100TVHD AND 120TVHD DirecTV US HD and worldwide

These antennas are specifically designed to receive DirecTV US high definition Ku and Ka signals as well as worldwide circular and linear Ku Band satellites. The triple port feed receives three satellites at 99W, 101W and 103W simultaneously. These antennas are recommended for vessels that spend most of the time in the continental US and are set up for high definition DirecTV distribution to the TV receivers.
The receivers should be HD capable, and located close to each TV so that they can be connected with HDMI cables to the display. The maximum length of HDMI cables is limited without special HDMI extenders.
SeaTel 100TVHDSeaTel 120TVHD
Reflector 106.68 cm (42in)Reflector 129.54cm (51 in)
Radome 136.46 cm (53,72 in) x 152.2 cm highRadome 166.88 cm (65.7 in) x 178.31 high
Weight 104.33 kg (230 lbs)Weight 117.93 kg (260 lbs)
Ku + Ka Triple port feed 3 DirectTV satellites HD + SD + worldwide Circular/Linear LNBKu + Ka Triple port feed 3 DirectTV satellites HD + SD + worldwide Circular/Linear LNB.
LMXP Controller via laptopLMXP Controller via laptop
List price $29,995List Price $31,995
The first two digits of the antenna model denote the size of the antenna dish in inches.
3004 = 30' or 76 cm
4004 = 40' or 1m
5004 = 50' or 1.2m
6004 = 60' or 1.5m
The last two digits indicate the year that the design of the antenna began operation.
4004 indicates a 40' antenna with 2004 technology, even though it is still one of the most recent and current models in production today. As another example, 4094 indicates 1994 technology which was a popular antenna for many years and there are still many in use.

The 4004 is the most common superyacht TV antenna, and is usually mounted with a matching 4006 VSAT antenna.
The Model 4004 is a 40” antenna that features high performance stabilization and satellite tracking using a 3-axis closed loop stabilization system, providing quality performance in the roughest seas. The Model 4004 has a compact, attractive all-white radome, DVB (Digital Video Broadcasting) signal identification, and Sea Tel’s proprietary antenna control and fast-track signal lock software. It’s ready for multiple satellite reception and includes a two year warranty on parts, one year labor.
The 4004 lists for about $20 500.

With Sea Tel’s patented antenna stabilization system, the TV choices you enjoy at home can be enjoyed at sea, all at the touch of a button. The 04 Series antennas are compatible with the services provided by the industries leading satellite companies like DirecTV™, DISH Network™, Bell TV™, Hotbird, Sky, Orbit and DirecTV Latin America (DLA)™.

All Sea Tel DBS TV-at-Sea systems accommodate any number of satellite receivers. Many TV sets may be installed onboard, each receiving its own programming from its satellite receiver.

See Full List On Marinesatellitesystems.com

300440045004
Antenna Diameter 30 in40 in48 in
0.76 m1.0 m1.2 m
Radome Diameter40 in48 in60 in
1.0 m1.2 m1.5 m
Radome Height49 in57.5 in66 in
1.2 m1.5 m1.7 m
Antenna Weight 155 lbs198 lbs228 lbs
(including radome)70.3 kg89.8 kg103.4 kg
Minimum E.I.R.P. 44 dB42 dB40.5 dB
The XX04 is not an unlimited azimuth antenna. The cable needs to unwrap when it reaches the physical limits to keep the cable from becoming twisted. The antenna actually unwraps when it gets to within 3 degrees of the physical limits.
The antenna has physical limits at 20 degrees off the starboard bow, through two revolutions to 700 degrees, which is 20 degrees off the port bow.
In normal operation, the antenna can move a total of 674 degrees from Relative Azimuth REL 23 through REL 360 to REL 697 degrees. When it reaches 697 degrees it will unwrap 360 degrees to land back at 337 and continue tracking the satellite.
The Relative Angle (REL) of 360 degrees normally points at the bow. (In the case of dual antennas, one antenna might point to the stern to avoid both antennas being in unwrap at the same time.) There is no REL 0 degrees.
During antenna initialization, the antenna moves from wherever it happens to be, in a clockwise direction until it hits the endstop at 700 degrees. It then moves back to an angle of 630 degrees (90 degrees off the port bow). The REL should read 630.
When it targets the satellite, it will move, using the 630 degree point as a starting reference, to the required satellite REL which is calculated from the required Azimuth and the ships heading.

Sea Tel Tac-92 Manually

The 6004 initializes in much the same way, except that the end stops are located at 75 degrees and 630 degrees. When the antenna initializes, it will rotate clock wise until it reaches the end stop at 630 degrees on the port beam. It will then rotate back about 45 degrees while completing initialization, before searching and targeting the satellite.
This antenna will unwrap when it gets within 10 degrees of either end stop.
The current software for this legacy PCU ends with the letter K (example 2.53k) while the regular PCU software ends in the letter L . Due to the difference in limits, it is important not to load the wrong software in the PCU.
